TECHNICAL DESCRIPTION
• PRODUCTION CAPACITY : 35~40 pcs/ min
• AVAILABLE GOODS OUTDIA : 60~110
• AVAILABLE GOODS HEIGHT : 60~180mm
• AIR PRESSURE : 6~7kgf/
• PRINTING COLOR : ONE COLOR
• CONVEYOR SPEED : 0~10m/ min
• PRINTING INK CONSUMPTION : 0.85g/ min
• MAIN POWER : NONE
• MAIN ELECTRIC POWER : 220/380V x 50/ 60 Hz
• AIR CONSUMPTION : 1.2/ min
• MACHINE SIZE : W1300 x L1950 x H1900
• MACHINE WEIGHT : 1,500 kg

APPLICATION
• THIS MACHINE IS SPECIALLY DESIGNED FOR PRINTING ON THE SURFACE OF AUTOMOTIVE OIL FILTER.

FEATURE
• NO MANPOWER REQUIRED.
• MODEL CHANGING TIME IS 10 MIN.
• PLC CONTROL SYSTEM INSTALLED
• ROTARY FEEDING & ROBOT ARM SYSTEM

OPTIONAL PART

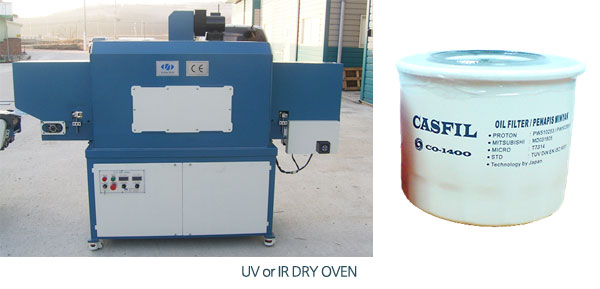

• HOUSING PRINT INK DRY
