Semi-Auto Eco Filter Assemble M/C(Model : UEFA-2S)
- PRODUCT CAPACITY : 6~10 pcs/ min
- AVAILABLE ENDCAP SIZE :
60~110mm - AVAILABLE ELEMENT HEIGHT : 60~250mm
- INDEX TURN TABLE TYPE ASSEMBLE SYSTEM
- SPECIAL HEATER(12 KW) & HOLDING JIG 1 SET
- SAFETY COVER INSTALLED
- MANUAL LOADING(for Nylon Cap & Paper Element & Inner Core) & AUTO UNLOADING SYSTEM
- ELECTRIC POWER : 380V/ 220V x 50/ 60Hz x 3P
TECHNICAL DESCRIPTION
- THIS MACHINE WELD BY THE PRESSURIZATION TO WELDING PART AFTER MELTING TO WELDING PART BY SPECIAL HEATER
- THE PRECESS IS PAPER ELEMENT LOADING(1ST PROCESS), LOWER CAP LOADING(2ND PROCESS), JIG TURNING(3RD PROCESS), UPPER CAP LOADING(4TH PROCESS), FINISHED GOODS UNLOADING(5TH PROCESS), IDLE PROCESS(6TH PROCESS) WITH 3 DIFFERENT HEATING ZONE IN THE INDEX SYSTEM.

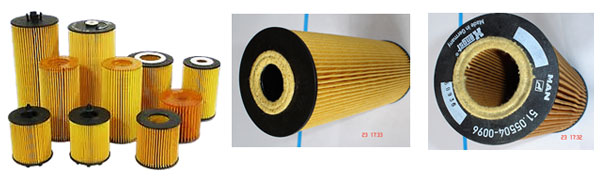

APPLICATION
- HEATER
- HOLDING PIPE JIG(FOR PAPER ELEMENT & NYLON ENDCAP)
- Endcap Holding Jig
OPTION
