Semi Auto Tapping M/C(Model : UTT-4A, Index Type)

PDF view download vod
Semi Auto Tapping M/C(Model : UTT-4A, Index Type) Semi Auto Tapping M/C(Model : UTT-4A, Index Type) Semi Auto Tapping M/C(Model : UTT-4A, Index Type) Semi Auto Tapping M/C(Model : UTT-4A, Index Type)
    DESIGN CRITERIA

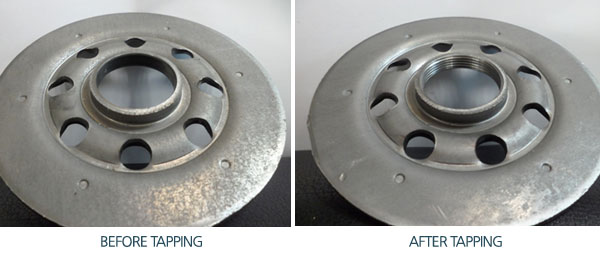

  • UTT-4A is designed for automaic thread making on R-plate which have a base hole came from press processing
    TECHNICAL DESCRIPTION
  • Product capacity : 28~30 pcs/min
  • Main power motor : 1.5 Kw
  • Available R-plate size : 60 to 106mm
  • Tapping oil tank volume : 70 Liter
  • Index table : 1/2Hp geared motor connect
  • Input air pressure : 5 Kgf/--centimeter
  • Machine weight :1,100 kg
  • Machine size : W1,000 x L1,200 x H2,000
    FEATURE
  • Forming Tap installed for clean work processing with no chip
  • 4 spindle multy head type designed for compact size & mass product
  • PLC controll progrem system is easy to operation
  • Special designed pushing device during the tapping to make a perfect rectangular of R-plate
  • One touch type tooling change device installed
  • Product count device installed
  • 4 wheel driver installed for easy to handling
  • Mesh type recycle tapping oil filter installed
  • Three step belt change type main head speed changeable
  • 6 devide AL main round working plate
  • Flexiable four line tapping oil shooting device and oil recycle system
    OPTION
  • De-oiling M/C

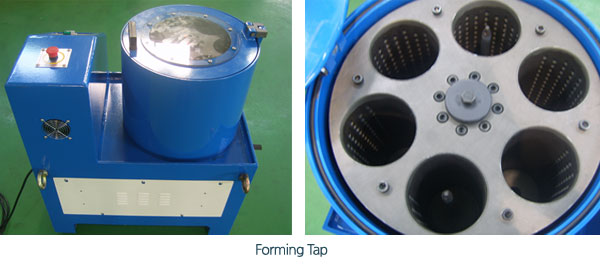

  • Forming Tap
  • Tapping Head
  • Base Holding Jig
