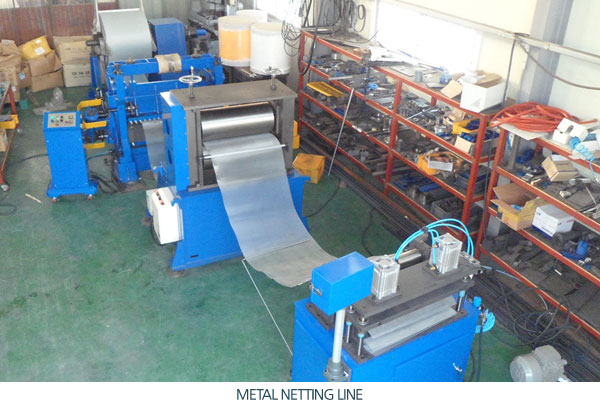

Auto Metal Netting M/C(Model : UMN-400/ 700)
- This Metal Netting Machine is designed to manufacture a tube, which is inserted inside and outside of automotive air, oil & fuel filters
GENERAL DESCRIPTION
- It is run by a mechanical crank axis.
- The blade of the knife can be changed according to a shape of tube.
- A special system cuts the material according to the arbitrary measurements,
FEATURE
- Product Capacity : 100~500spm
- Available Width : Max. 700mm
- Available Thickness : 0.40~0.8T
- Feeding Length : 7~20mm
- Electric Power : 380V x 50/60Hz x 3 Phase
- Power Motor : 2.25~7.5Kw
- Working Stroke : 15~30mm
- Mold Change Time : 30~60min
- Machine Size : (W)1300 x (L)1700 x (H) 2000
GENERAL SPECIFICATION(BASE ON UMN-700)

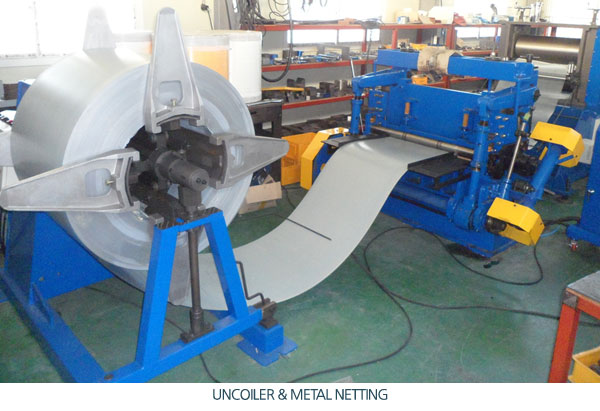

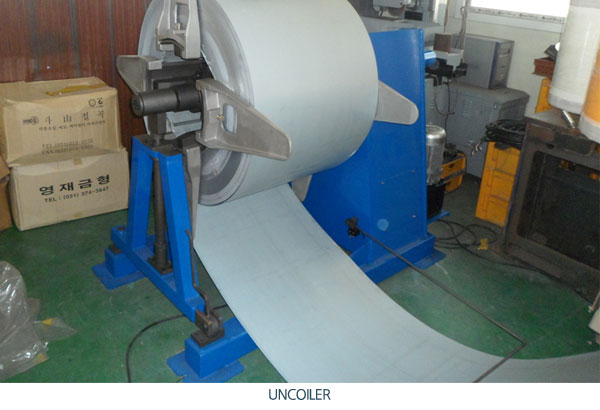

- Uncoiler : 2 ton or 3 ton or 5 Ton

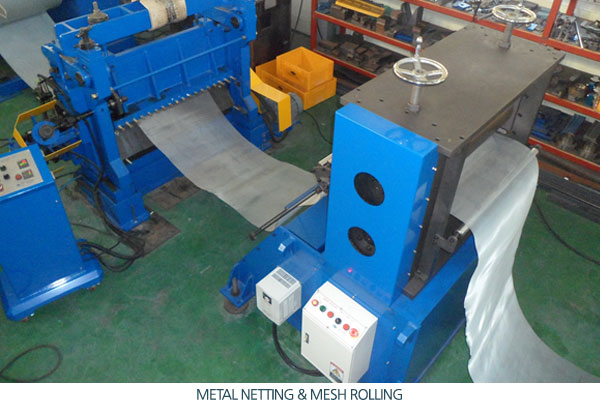

- Mesh Rolling M/C

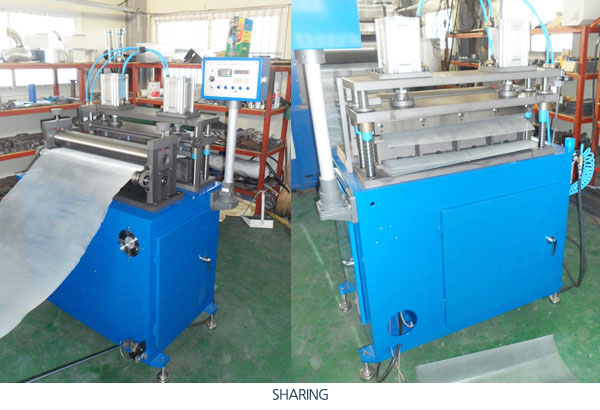

- Steel Sharing M/C
- Coil Steel or Sheet
OPTION
