Auto PVC Sol Dispenser M/C(Model : UDD-200A)
- CYLINDER NOZZLE TYPE
- AVAILABLE CAP HEIGHT : 5~15mm
- AVAILABLE CAP OUT-DIA : 60~95mm
- PRODUCTION CAPACITY : 30~40 pcs/ min
- FEEDING SYSTEM : ROLL FEEDING SYSTEM
- MACHINE DIAMENTION : W1200 x L1600 x H1800
- MACHINE WEIGHT : 1000 kg
- DISPENSER CONTROL STYLE : TIMER SYSTEM
- DRIVING MOTOR : 0.75 kw
- AIR SUPPLY PRESSURE : 6kgf/
- ELECTRICITY : 380/ 220V x 50/ 60 Hz
- EASY TO CHANGE THE DIFFERENT MODEL BY USING OF ADJUSTING HANDLE

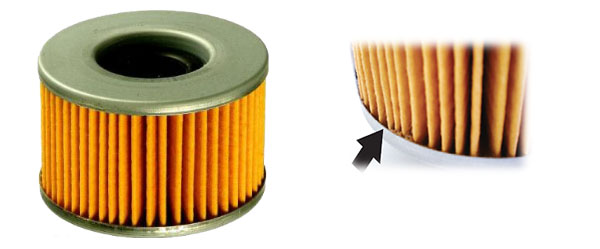

- INCLUDED 2 LINE CONVEYOR SYSTEM FOR UPPER & BOTTOM END CAP
TECHNICAL DESCRIPTION
- AUTO LOADING PARTS FEEDING DEVICE LOADING PUMP(DRUM TO TANK LOADING) or LOADING & MIXING DEVICE or RAM PUMP PVC SOL MATERIAL
OPTIONAL PAPRT
