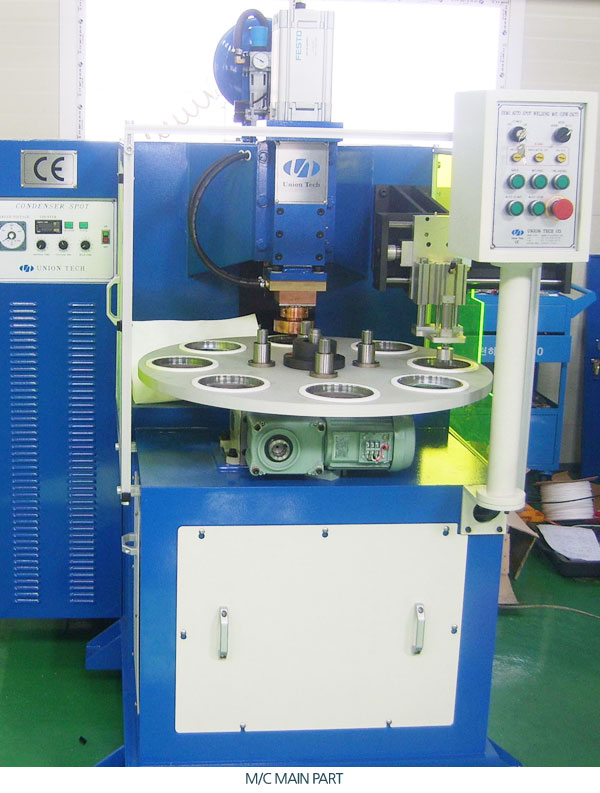

Semi Auto Spot Welding M/C(Model : USW-25CT)
- MANUAL LOADING & AUTO UNLOADING SYSTEM(WITH UNLOADING DEVICE)
- PRODUCT CAPACITY : 20 pcs/ min
- BOTTOM PLATE DIAMETER : 60~106mm
- SEAMING CAM DIAMETER : 80~125mm
- INPUT CAPACITY : 25KVA
- AIR CYLINDER STROKE FOR WELDING : 125mm
- AVAILABLE WELDING THICKNESS & POINT : 5mm x 14 point
- ELECTRIC POWER : 220V x 50/ 60Hz x 2P
- CONDENSER CAPACITY : 210,000
- CYCLE TIME : BALANCE UNLOADING 1.5 sec A) TABLE ROTATION : 1.0 sec B) WELDING : 0.3~0.7 sec
- WELDING TENSIL STRENGTH : 100kg/
- PUMP CAPACITY : 20
/ min - MACHINE SIZE & WEIGHT : W1410 x L1830 x H1980 / 2000 kg
TECHNICAL DESCRIPTION
- THIS MACHINE DESIGNED TO WELD THE SEAMING CAP & BOTTOM PLATE(R-PLATE)
APPLICATION
- FULL AUTO LOADING MAGAZIN SYSTEM
- WELDING JIG & BASE HOLDING JIG
- Unloading Conveyor
- ELECTRIC CURRENT : 25KVA(same as 20KW & 56.8 Amp)
OPTIONAL PAPRT
